Magnetic Flowmeters

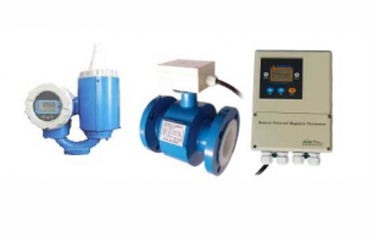

MAG888-DC Battery-Powered Magnetic Water Meter

The SpireMag series MAG888-DC flowmeter is a battery-powered high-performance magnetic water meter designed for water and wastewater industry to accurately measure the water flow in closed conduits. MAG888-DC is ideal for remote locations in municipal, irrigation, wastewater treatment and industrial liquid processes industries where no power connection is available.

  • Stand alone water meter with battery lifetime for more than 4 years. Easy battery change
  • Billing grade with class 0.5 accuracy
  • Plug and play. No need for programming, no need for wiring
  • Compact and rugged design. IP68 submersible
  • Large measurement range. Bi-directional
  • No moving parts to wear and tear. Maintenance free
  • Short straight-pipe run requirement. Suitable for any desired installation location
  • Optional GSM/GPRS wireless and turnkey data service.
  • img
  • img
  • img

Applications

  • Accurate water metering for water consumption and revenue generation
  • Water metering in remote locations
  • Potable water metering
  • Irrigation water metering
  • Wastewater and raw water metering
  • Water distribution network monitoring
  • Leakage detection
  • Pump performance monitoring

Specifications

  • DN15 (1/2") ～ DN800 (32")
  • Accuracy:
  • ±0.5% standard
  • For higher accuracy, please contact support@spiremt.com for availability Measurement Range
  • 0 ～±15m/s (±49ft/s)
  • Nominal Pressure:
    DN15-DN40 (0.5" – 1.5"): 2.5MPa (362psig)
    DN50-DN250 (2"-10"): 1.6MPa (232psig)
    DN300-DN600 (12"-24"): 1.0MPa (145psig)
    DN700-DN8000 (28"-32"): 0.6MPa (87psig)
    Higher pressure rating is available upon request
  • Medium Electrical Conductivity: ≥ 20us/cm
  • Medium Temperature: -10

more on datasheet
